Creative LED Display
We are a Creative LED Display manufacturer, focusing on R&D and production, with core advantages of flexible customization, vivid display, 100,000-hour lifespan and OEM/ODM service for B2B bulk orders.
Application Scenarios
Ideal for creative fixed installation scenarios, including commercial complexes, cultural venues, art centers, brand showrooms, indoor/outdoor creative billboards and themed exhibition halls.
Creative Visual Solution
Our mature creative display technology enables our LED displays to meet diverse creative needs—flexible customization, vivid imaging and stable performance, perfect for personalized fixed installation.
Core Pain Points
Design & Planning Companies
Limited customization, rigid shape, unable to meet creative design and personalized display needs.
Engineering Contractors
Difficult installation of creative shapes, poor compatibility, inconvenient later maintenance.
Brand Operators
Lack of creativity, common display effect, unable to highlight brand personality and attract attention.
Cultural & Art Institutions
High requirements for creative expression, color restoration and display stability, needing professional support.
Distributors
Uncompetitive creative design, unstable supply chain, inadequate customization and after-sales support.
Our Solutions
| Model | P1.25 | P1.53 | P1.667 | P1.923 | P2.0 | P2.5 | P3 | P4 |
|---|---|---|---|---|---|---|---|---|
| Pixel Pitch | 1.25 | 1.53 | 1.667 | 1.923 | 2.0 | 2.5 | 3 | 4 |
| LED Specification | SMD1010 | SMD1212 | SMD1212 | SMD1515 | SMD1515 | SMD2121 | SMD2121 | SMD2121 |
| Module Size | 320*160 | 320*160 | 200*150 | 200*150 | 320*160 | 320*160 | 320*160 | 320*160 |
| Module Resolution | 256*128 | 208*104 | 120*90 | 104*78 | 160*80 | 128*64 | 104*52 | 80*40 |
| Scan Mode | 64 Scan | 52 Scan | 30 Scan | 26 Scan | 32 Scan | 32 Scan | 32 Scan | 32 Scan |
| Minimum Viewing Distance | 1.2 | 1.5 | 1 | 1.9 | 2 | 2.5 | 3 | 4 |
| Brightness | ≥700 | ≥700 | ≥700 | ≥1000 | ≥700 | ≥800 | ≥1000 | ≥1000 |

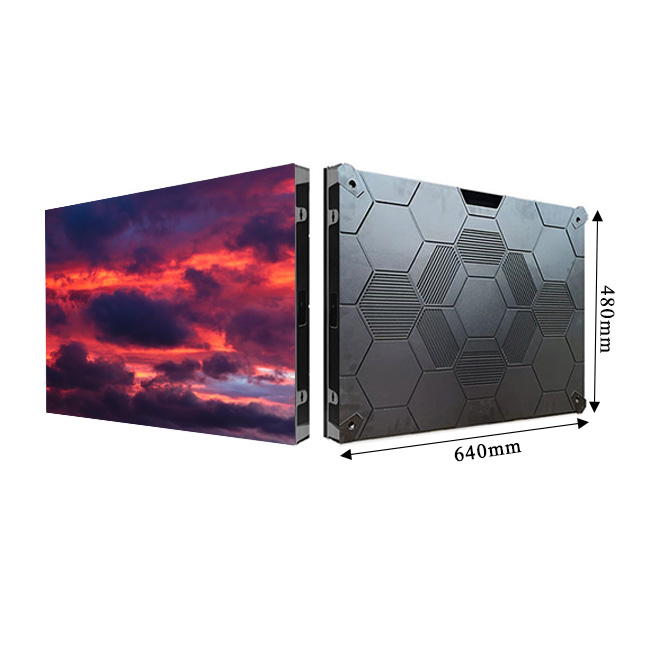

| Cabinet Size | 640*640 | 640*640 | 400*300 | 400*300 | 640*640/640*480 | 640*640/640*480 | 640*640/640*480 | 640*640/640*480 |
| Cabinet Material | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum | Steel | Steel | Steel | Steel |
| Cabinet Weight | 7Kg | 7Kg | 8Kg | 8Kg | 8Kg | 11Kg | 13Kg | 11Kg |
| Max Power | 700w/m² | 700w/m² | 800w/m² | 800w/m² | 800w/m² | 800w/m² | 900w/m² | 900w/m² |
| Average Power | 350w/m² | 350w/m² | 400w/m² | 400w/m² | 400w/m² | 400w/m² | 300w/m² | 240w/m² |
| Refresh Rate | 3840HZ | 3840HZ | ||||||
| IP Rating | ≥IP42 | ≥IP42 | ||||||
| Viewing Angle | 140° | 140° | ||||||
| Gray Scale | ≥4096 level | ≥4096 level | ||||||
| Lifespan | 100000h | 100000h | ||||||
| Working Voltage | AC220V/(110V)+15%, 47~63HZ | AC220V/(110V)+15%, 47~63HZ | ||||||
| Signal Transmission | LAN Cable | LAN Cable | ||||||
| Control System | Computer Control System | Computer Control System | ||||||
Parameters are mass-produced specs, customizable. For details, consult our professional team.
- Lightweight, ventilated, hang-friendly
- 360° full view, great display
- Magnetic mounting, quick disassembly
- GOB tech, anti-collision & waterproof
Selection Guide
Select based on creative scenario, viewing distance and our mainstream specs:
Viewing Distance
P1.667-P2.5 (3-10m), P3.91-P4.81 (10-30m) for clear display.
Scenario
Small creative areas (320×180mm); large creative screens (320×320mm/512×256mm).
Usage
Indoor creative ads (800-1200cd/㎡); outdoor creative billboards (2000-5000cd/㎡).
OEM/ODM Customization Services
Shape Customization

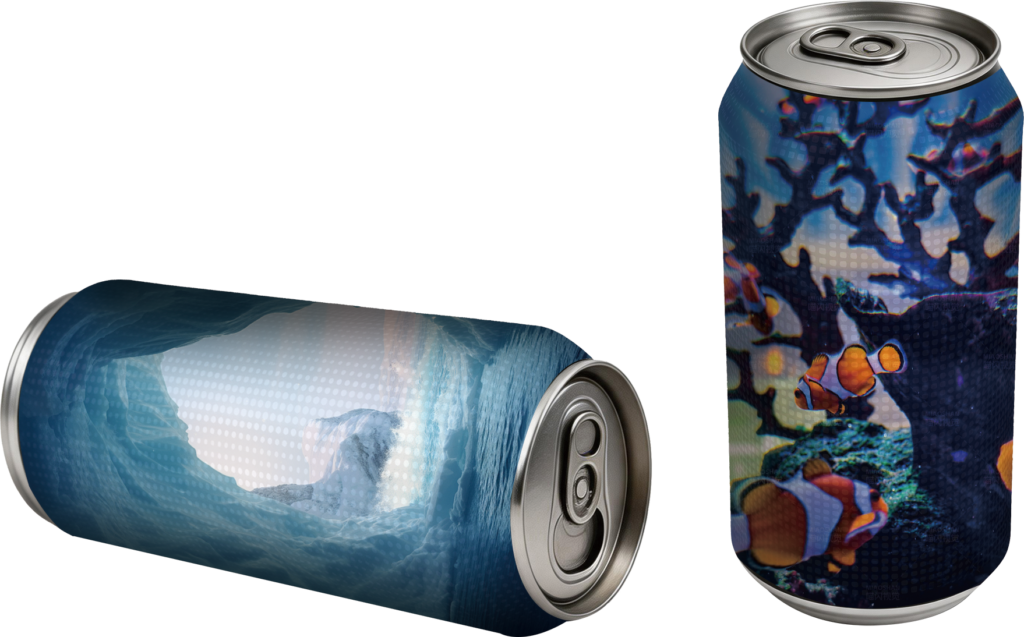

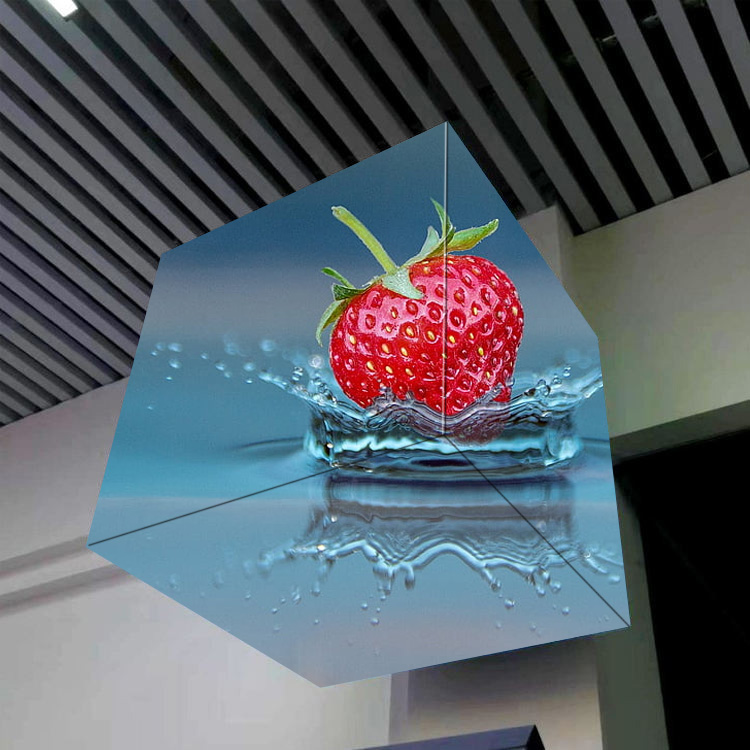

Support irregular creative shapes (curved, cylindrical, special-shaped) for personalized needs.
Structure Customization
Provide creative fixed brackets, reinforced panels, customized waterproof structures.
Display Customization
High color gamut adjustment, intelligent brightness control, compatible with mainstream control systems.
Appearance Customization
Custom panel color, embedded LOGO, anti-glare surface.
Performance Customization
Custom pixel pitch, brightness and protection level based on creative scenarios.
Our Advantages
Professional Creative R&D
Focus on creative LED display, mastering personalized customization and scene matching.
Full-process Customization
From shape to performance, fully meet diverse creative design needs.
Stable Quality
Industrial-grade components, strict inspection, long lifespan and low maintenance cost.
Efficient Supply
600+ daily output, 48/72h delivery, competitive pricing for B2B bulk orders.
One-stop Service
Integrate design, production, installation and after-sales to solve creative display problems.
Contact Us Today
As a professional Creative LED Display manufacturer, we provide personalized creative solutions. Contact us for a free custom quote and exclusive bulk discounts.
FAQ
Can it be customized into creative shapes to meet design needs?
Yes. We support irregular creative shapes (curved, cylindrical) and provide optimal installation solutions.
Is the creative LED display easy to install and maintain?
Yes. It has a flexible fixed structure, easy to install, and we provide professional on-site maintenance.
Is it compatible with our creative display control system?
Fully compatible with mainstream systems, supporting intelligent control customization.
What about color restoration for creative display?
High color gamut design, vivid imaging, no color shift, perfect for creative expression.
Any preferential policies for bulk purchases?
Yes. Exclusive bulk discounts, transparent pricing and free customization guidance.
