Outdoor LED Display
Our outdoor LED displays, made with industrial-grade components, are designed for B-end clients (manufacturers, engineering contractors, distributors), featuring high brightness, weather resistance and OEM/ODM customization, supporting bulk orders.
Application Scenarios

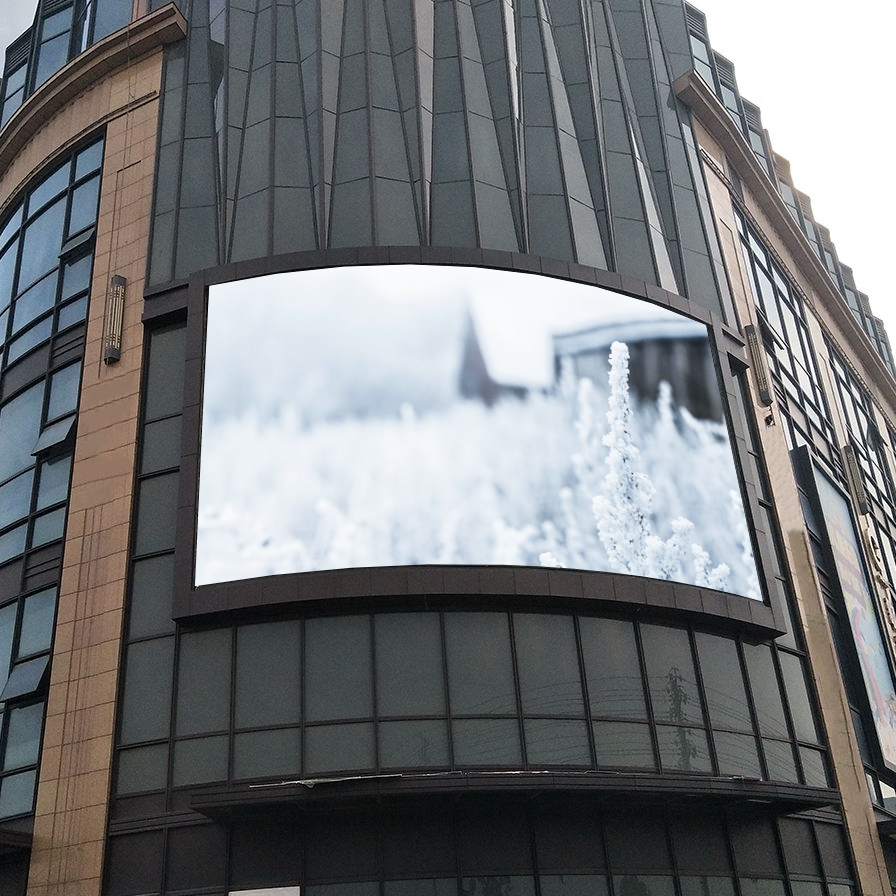

Ideal for a wide range of outdoor environments, including outdoor advertising billboards, square large screens, stadiums, scenic spots, road traffic signs, commercial plazas, outdoor performance venues, campus squares and outdoor exhibition activities.
Premium Outdoor Visual Solution
Backed by mature outdoor display technology, our outdoor LED displays precisely address the unique needs of outdoor application scenarios, with strong adaptability to harsh weather, supporting both permanent fixed installation and temporary outdoor event deployment.
Core Pain Points
Event Planning Companies
Event Planning Companies: Poor weather resistance, unstable display in strong light/rain, difficult installation and poor compatibility.
Engineering Contractors
Engineering Contractors: Inconsistent quality, poor windproof/waterproof performance, inconvenient construction guidance and difficult maintenance.
Outdoor Advertising Operators
Outdoor Advertising Operators: Low brightness, easy fading, high energy consumption, frequent failures and cumbersome maintenance.
Public Institutions & Stadiums
Public Institutions & Stadiums: Strict requirements for weather resistance, stability and long service life, needing professional guidance and after-sales support.
Distributors & Importers
Distributors & Importers: Unstable supply chains, uncompetitive pricing, inadequate after-sales and poor weather adaptability.
Our Solutions
Technical Specifications
| Type / Part Number | P2.5 | P3 | P4 | P5 | P6 | P8 | P10 |
| Pixel Pitch (mm) | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 |
| LED Standard | SMD 1415 | SMD 1919 | SMD 1921 | SMD 2525 | SMD 2727 | SMD 3535 | SMD 3535 |
| Module Dimensions (mm) | 320*160 | 192*192 | 320*160 | 320*160 | 192*192 | 320*160 | 320*160 |
| Module Resolution (L×W) | 128×64 | 64×64 | 80×40 | 64×32 | 32×32 | 40×20 | 32×16 |
| Scan Mode | 16-scan | 16-scan | 10-scan | 8-scan | 8-scan | 4-scan | 2-scan |
| Minimum Viewing Distance (m) | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 |
| Brightness (cd/㎡) | ≥5000 | ≥4000 | ≥5000 | ≥5000 | ≥5500 | ≥6500 | ≥5000 |
| Cabinet Size (L×W, mm) | 960*960 | 576*576 | 960*960 | 960*960 | 960*960 | 960*960 | 960*960 |
| Cabinet Material | Iron | Iron | Iron | Iron | Iron | Iron | Iron |
| Cabinet Weight | 30Kg | 30Kg | 30Kg | 46Kg | 46Kg | 45Kg | 46Kg |
| Maximum Power Consumption | 800W/㎡ | 800W/㎡ | 2000W/㎡ | 1400W/㎡ | 1000W/㎡ | 1200W/㎡ | 800W/㎡ |
| Average Power Consumption | 400W/㎡ | 350W/㎡ | 1000W/㎡ | 700W/㎡ | 350W/㎡ | 600W/㎡ | 400W/㎡ |
| Refresh Rate (Hz) | ≥1200Hz | ≥1200Hz | ≥1200Hz | ≥1200Hz | ≥1200Hz | ≥1200Hz | ≥1200Hz |
| Protection Level | ≥IP67 | ≥IP67 | ≥IP67 | ≥IP67 | ≥IP67 | ≥IP67 | ≥IP67 |
| View Angle | 120° | 120° | 120° | 120° | 120° | 120° | 120° |
| Grey Scale Level | ≥4096 Level | ≥4096 Level | ≥4096 Level | ≥4096 Level | ≥4096 Level | ≥4096 Level | ≥4096 Level |
| Lifespan | 100000H | 100000H | 100000H | 100000H | 100000H | 100000H | 100000H |
| Working Voltage | AC220V/(110V) ±15%, 47~63Hz | AC220V/(110V) ±15%, 47~63Hz | AC220V/(110V) ±15%, 47~63Hz | AC220V/(110V) ±15%, 47~63Hz | AC220V/(110V) ±15%, 47~63Hz | AC220V/(110V) ±15%, 47~63Hz | AC220V/(110V) ±15%, 47~63Hz |
| Signal Transmission | LAN Cable | LAN Cable | LAN Cable | LAN Cable | LAN Cable | LAN Cable | LAN Cable |
| Control System | Computer Control System | Computer Control System | Computer Control System | Computer Control System | Computer Control System | Computer Control System | Computer Control System |
- High-brightness LED modules (≥5000 cd/m²) ensure clear visibility for outdoor displays such as billboards and public screens
- IP65/IP67 protection with waterproof and dustproof design for stable operation in outdoor environments
- Optimized power consumption for efficient long-term use and reduced operating costs
- Industrial-grade components ensure reliable performance for continuous outdoor applications

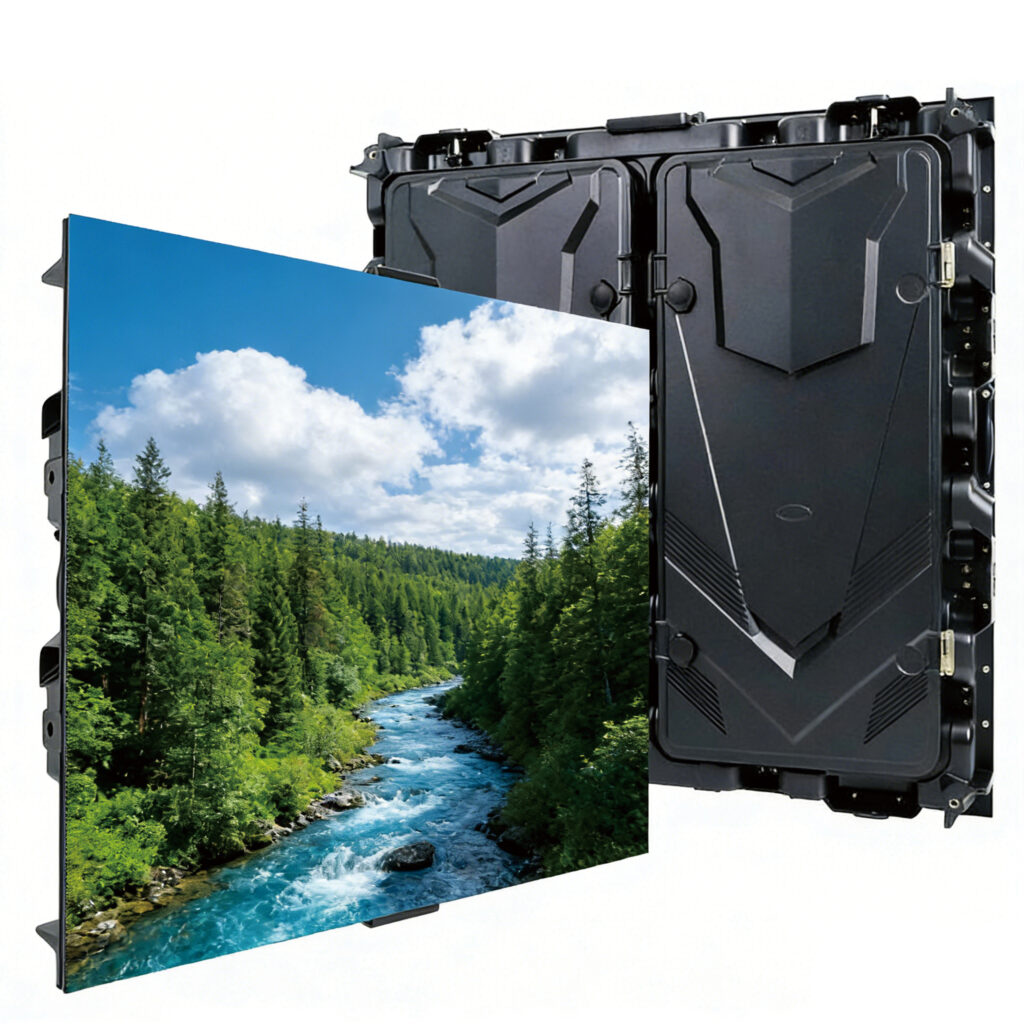

- Standard module sizes for easy installation and compatibility with LED cabinets
- Stable production capacity and consistent supply to support project and distribution needs
Selection Guide
2-4m viewing distance
Select P2.5-P4, high definition & high brightness, for close outdoor commercial scenes.
5-6m viewing distance
Select P5-P6, balanced performance & budget, for building facades and storefronts.
8m+ viewing distance
- Select P8-P10, high cost-effectiveness, for large outdoor venues and plazas. All panels are IP67 weatherproof, with 1200Hz+ refresh rate and 100000 hours lifespan.
OEM/ODM Customization Services
Size Customization
Customize panel/screen dimensions, supporting irregular shapes (e.g., curved billboards, cylindrical screens).
Structure Customization
Provide windproof reinforced panels, adjustable brackets and customized waterproof structures for different outdoor environments.
Control System Customization
Compatible with mainstream outdoor control systems, supporting remote monitoring and automatic brightness adjustment.
Appearance Customization
Customize panel color, embed logos and adopt anti-glare surface to avoid reflection.
Our Advantages
Integrated Turnkey Solutions
Combine design, production, customization, on-site installation and after-sales to solve outdoor construction and usage issues.
Industry Expertise
10+ years of outdoor LED experience, mastering outdoor scenario and harsh weather adaptation.
Tailored Customization
Full-process customization (size, performance) to meet diverse outdoor project needs.
High Value
Bulk benefits, transparent pricing, high weather resistance and low maintenance cost, reducing operational expenses.
Reliable Quality
Strict industrial inspection, waterproof/dustproof/high-low temperature tests, ensuring stable performance and long service life.
Contact Us Today
As your reliable outdoor LED display partner, we solve your outdoor display pain points with weather-resistant, high-brightness and cost-effective products. Contact us for a free custom quote and exclusive bulk discounts.
FAQ
Is the outdoor LED display easy to install and applicable for temporary outdoor events?
Yes. Our lightweight and durable panels with quick-installation structure can be installed and debugged within 10-15 minutes, suitable for temporary outdoor events and reusable, with good wind resistance.
Can the panel size be customized to fit our outdoor installation space?
Yes. We provide customized panel and screen sizes, and design optimal waterproof and windproof installation solutions based on your outdoor space and local weather conditions.
Is the product compatible with the control system commonly used by our company for outdoor displays?
It is fully compatible with mainstream outdoor control systems, and we can customize the control interface and add remote monitoring functions to fit your operational habits.
What measures will be taken in case of equipment failure during outdoor use?
We provide 24-hour remote technical guidance and on-site maintenance services, with professional maintenance teams in major regions to ensure prompt issue resolution and minimize losses.
Are there any preferential policies for bulk purchases by engineering companies or outdoor advertising operators?
Yes. We offer exclusive bulk discounts for such clients, with transparent pricing and free on-site installation guidance to reduce procurement and construction costs.
