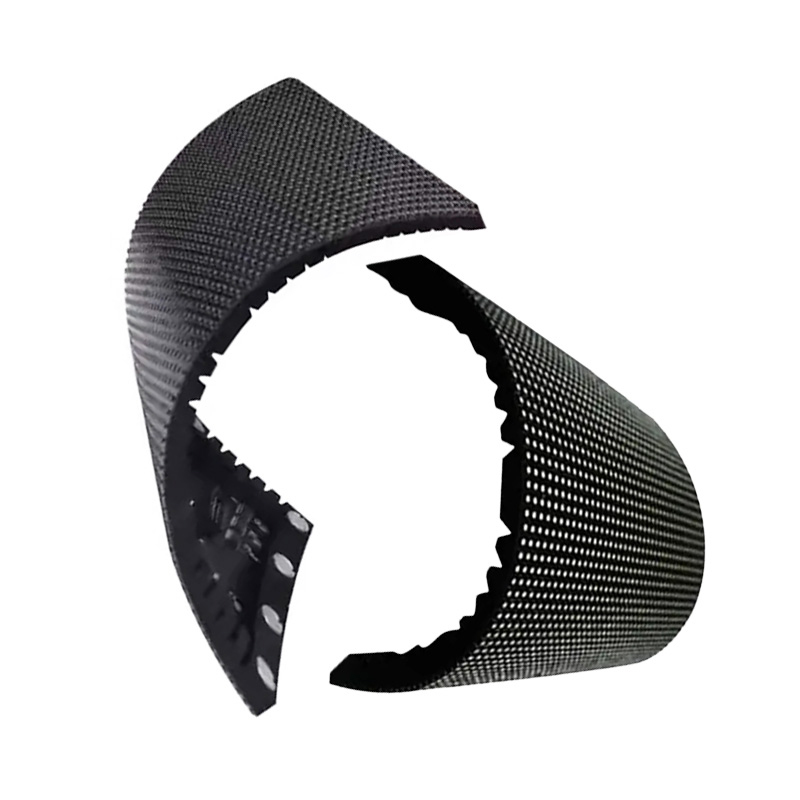

Flexible LED Display
As a professional Flexible LED Display manufacturer integrating R&D and production, we focus on high-quality flexible displays. Our core strengths: excellent bendability, HD imaging, easy installation, 100,000-hour lifespan, and OEM/ODM services for B2B bulk orders.
Application Scenarios

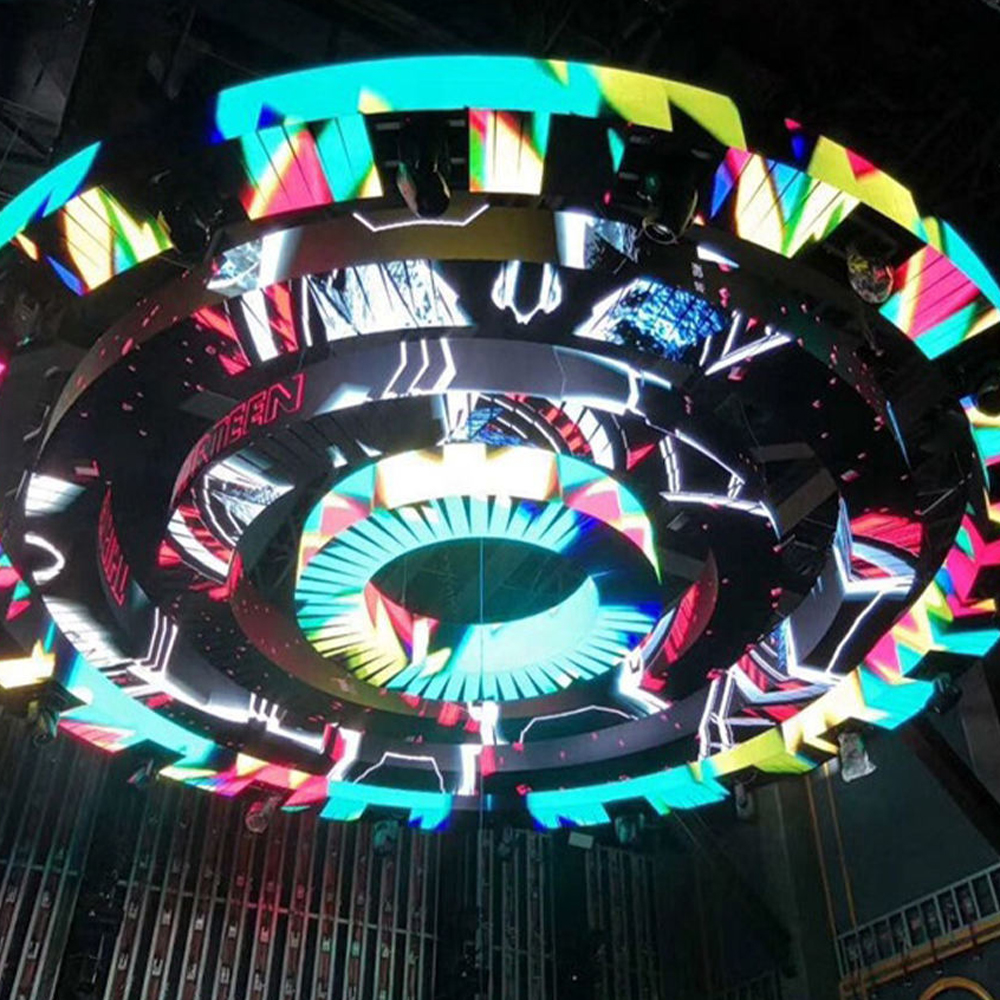

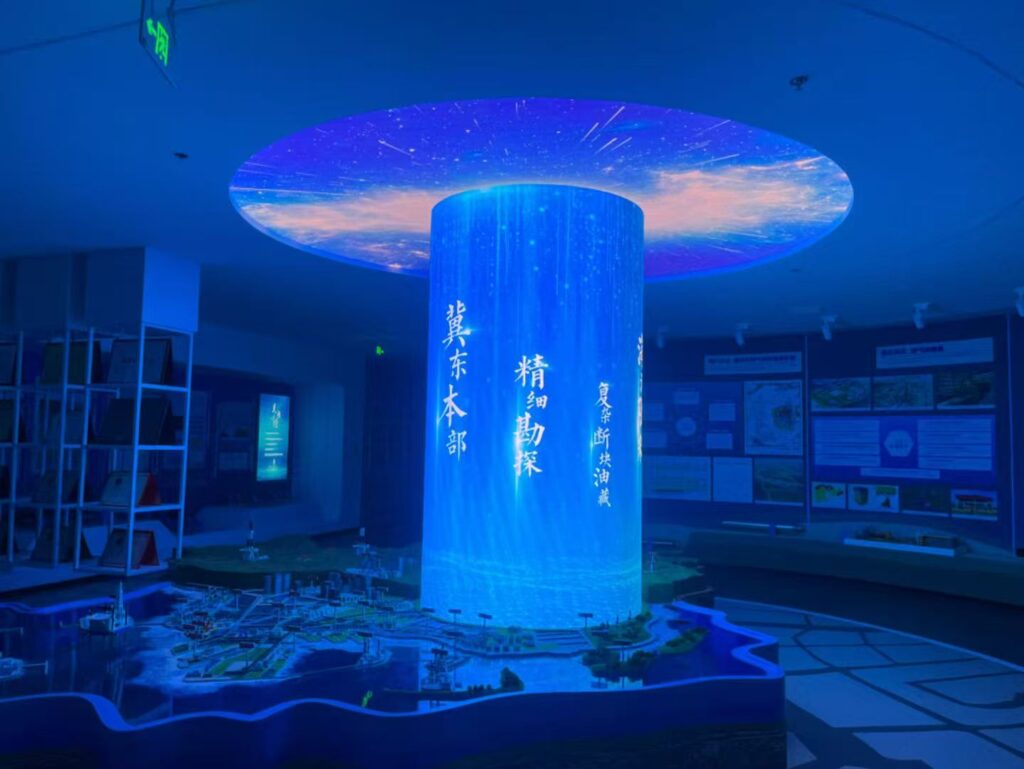

Our Flexible LED Displays fit flexible fixed installation scenarios, including curved storefronts, arc mall windows, curved hotel lobbies, irregular office decorations, campus art installations and flexible retail zones.
Flexible Visual Solution
With mature flexible display technology, our products meet diverse flexible installation needs—HD imaging, easy mounting and stable performance, ideal for commercial and public flexible fixed displays.
Core Pain Points
Design & Planning Companies
Limited customization, generic effects, and inability to reproduce complex flexible design details.
Engineering Contractors
Difficulties in flexible display installation, poor compatibility with irregular positions, and inconvenient maintenance.
Brand Operators
Blurred displays, easy fading, and failure to attract customers or convey brand information via inflexible solutions.
Public Institutions & Campuses
High demands for clarity, stability and ease of use, requiring professional support for flexible installation.
Distributors
Uncompetitive performance, unstable supply chains, and insufficient customization/after-sales support.
Our Solutions
| Parameter | P2 | P2.5 | P3 | P4 |
|---|---|---|---|---|
| Part Number | P2 | P2.5 | P3 | P4 |
| Pixel Pitch (mm) | 2 | 2.5 | 3 | 4 |
| LED Standard | SMD1415 | SMD2121 | SMD2121 | SMD2121 |
| Module Dimensions (mm) | 240×120 | 240×120 | 240×120 | 256×128 |
| Module Resolution (L×W) | 120×60 | 96×48 | 80×40 | 64×32 |
| Scan Mode | 32-scan | 32-scan | 32-scan | 16-scan |
| Minimum Viewing Distance (m) | 2 | 2.5 | 3 | 4 |
| Brightness (cd/m²) | ≥800 | ≥800 | ≥1000 | ≥1000 |
| Cabinet Size (L×W, mm) | 512×512 | 640×640 | 576×576 | 576×576 |
| Max Power Consumption | 800W/m² | 800W/m² | 800W/m² | 800W/m² |
| Average Power Consumption | 240W/m² | 240W/m² | 240W/m² | 240W/m² |
| Refresh Rate (Hz) | ≥1920 | ≥1920 | ≥1920 | ≥1920 |
| Protection Level | ≥IP42 | ≥IP42 | ≥IP42 | ≥IP42 |
| View Angle | 140° | 140° | 140° | 140° |
| Gray Level | ≥4096 level | ≥4096 level | ≥4096 level | ≥4096 level |
| Life Span | 100000h | 100000h | 100000h | 100000h |
| Working Voltage | AC220V/(110V) ±15%, 47~63HZ | AC220V/(110V) ±15%, 47~63HZ | AC220V/(110V) ±15%, 47~63HZ | AC220V/(110V) ±15%, 47~63HZ |
| Signal Transfer | LAN Cable | LAN Cable | LAN Cable | LAN Cable |
| Control System | Computer control system | Computer control system | Computer control system | Computer control system |
- - Stable LED display performance for clear and consistent visual output
- - IP42 protection suitable for indoor installation environments
- - Standard modular design for easy installation and seamless splicing
- - High-efficiency SMD LEDs with reliable performance and long-term stability
- - Standard module sizes for common display configurations
- - Stable production capacity and fast delivery for bulk orders
Selection Guide
Ultra-close & High-end Scenarios (2m viewing distance)
Choose P2. Highest pixel density, sharp image quality, perfect for high-end indoor stages, studio backgrounds and premium exhibition halls.
Medium-close Commercial Scenes (2.5-3m viewing distance)
Choose P2.5 / P3. Balanced performance and cost, suitable for retail storefronts, conference rooms and general commercial indoor projects.
Large-area & Long-distance Installations (4m+ viewing distance)
Choose P4. Cost-effective, wide coverage, ideal for large indoor plazas, building interiors and fixed large-screen projects.
OEM/ODM Customization Services
Size Customization
Custom panel/screen dimensions to fit flexible installation spaces and specs.
Structure Customization
Fixed brackets, reinforced panels and customized waterproof structures for different environments.
Display Customization
High color gamut adjustment, intelligent brightness control, compatible with mainstream systems.
Appearance Customization
Custom panel color, embedded logos and anti-glare surfaces for optimal viewing.
Performance Customization
Tailor pixel pitch, brightness and protection level to flexible scenarios.
Our Advantages
Professional R&D
Specialize in Flexible LED Displays, mastering flexible adaptation and scenario matching.
Full-process Customization
End-to-end customization to meet diverse flexible display needs.
Stable Quality
Industrial components and strict inspection, long lifespan and low maintenance cost.
Efficient Supply
600+ daily output, 48/72h delivery, competitive bulk pricing.
One-stop Service
Integrate design, production, installation and after-sales to solve flexible display challenges.
Contact Us Today
As a professional Flexible LED Display manufacturer, we provide personalized solutions. Contact us for a free custom quote and exclusive B2B bulk discounts.
FAQ
Can your displays be customized to fit irregular installation positions?
Absolutely. Full-process size customization ensures perfect fit for your flexible space and specs.
Yes. Lightweight modular design simplifies installation, with professional on-site maintenance.
Yes. We customize panel/screen sizes and design optimal fixed installation solutions based on your space.
Is your display compatible with our existing control system?
Fully compatible with mainstream systems, supporting intelligent brightness adjustment for flexible scenarios.
How is the visual effect and detail restoration?
High color gamut and HD imaging perfectly restore colors and details, even in curved positions.
Any preferential policies for bulk purchases?
Yes. Exclusive B2B bulk discounts, transparent pricing and free customization guidance.
