Built for Demanding Outdoor Fixed Installations
Outdoor display projects require more than brightness. Long operating hours, unstable weather, high power consumption, difficult maintenance, and structural installation complexity all increase project risk. Our outdoor die-cast LED modules are designed to solve these real deployment challenges with a durable, energy-efficient, and installation-friendly modular solution.
Suitable for These Buyers
This product is ideal for:
- LED display distributors
- Outdoor advertising project contractors
- System integrators
- Commercial display solution providers
- Fixed installation project buyers
Common Project Challenges
Outdoor LED installations often face practical issues:
- Poor heat dissipation causing unstable long-term performance
- High electricity costs in 24/7 advertising operation
- Water ingress damaging power or control systems
- Heavy cabinets increasing installation difficulty
- Difficult maintenance leading to expensive downtime
- Limited structural flexibility for curved or custom projects
Engineered for Reliable Outdoor Fixed Installations
Built for demanding outdoor fixed display projects, our die-cast LED modules combine efficient heat dissipation, premium visual performance, energy savings, and flexible installation support to ensure stable long-term operation in harsh environments.
Advanced Thermal Management
Full die-cast aluminum housing with aerodynamic airflow design for faster heat dissipation and stable performance
Up to 35% Energy Saving
Optimized structural and power design reduces long-term operating costs
Premium Outdoor Visuals
≥3840Hz refresh rate, 5000:1 contrast ratio, and up to 6500 nits brightness for clear outdoor visibility
Flexible Maintenance & Fast Installation

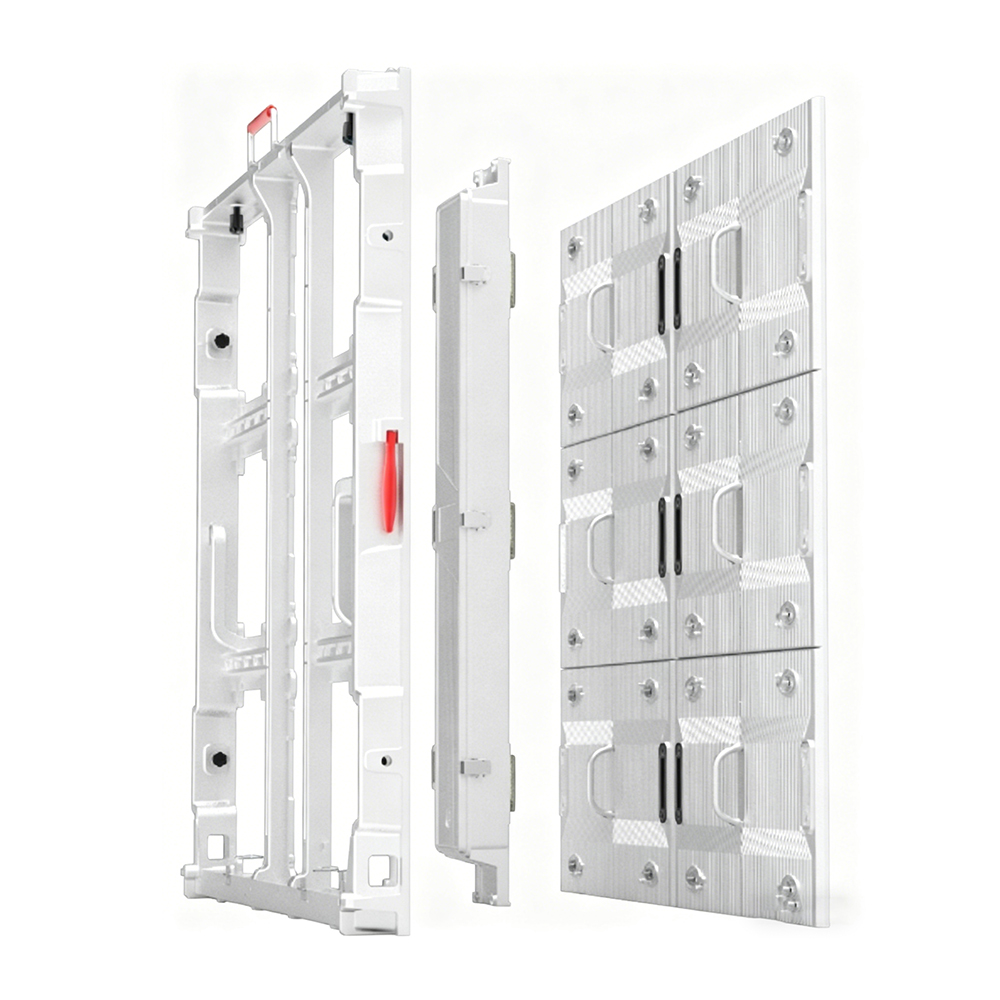

Front/rear service design, lightweight 960×960mm structure, and quick module replacement for easier deployment

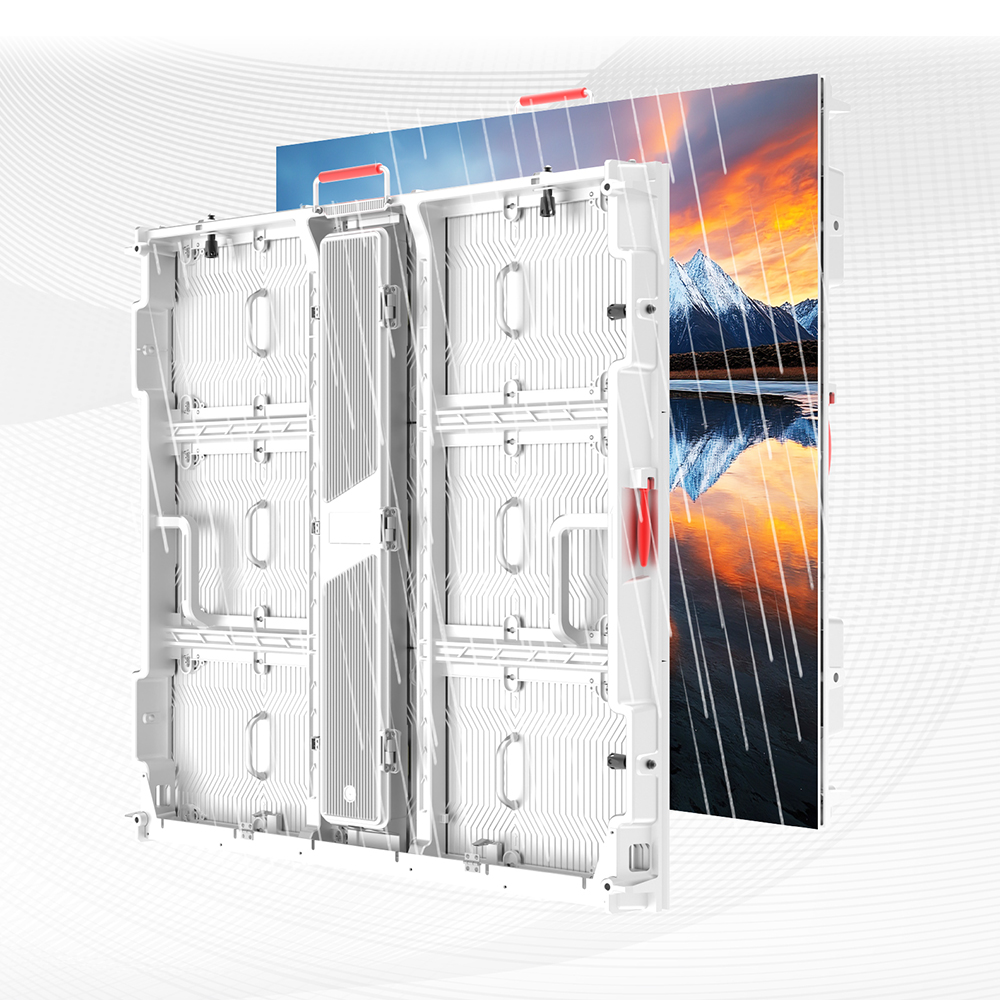

Built for Harsh Outdoor Conditions
IP65/IP54 protection, -40°C to 60°C operation, and up to 100,000 hours lifespan
Flexible Project Compatibility

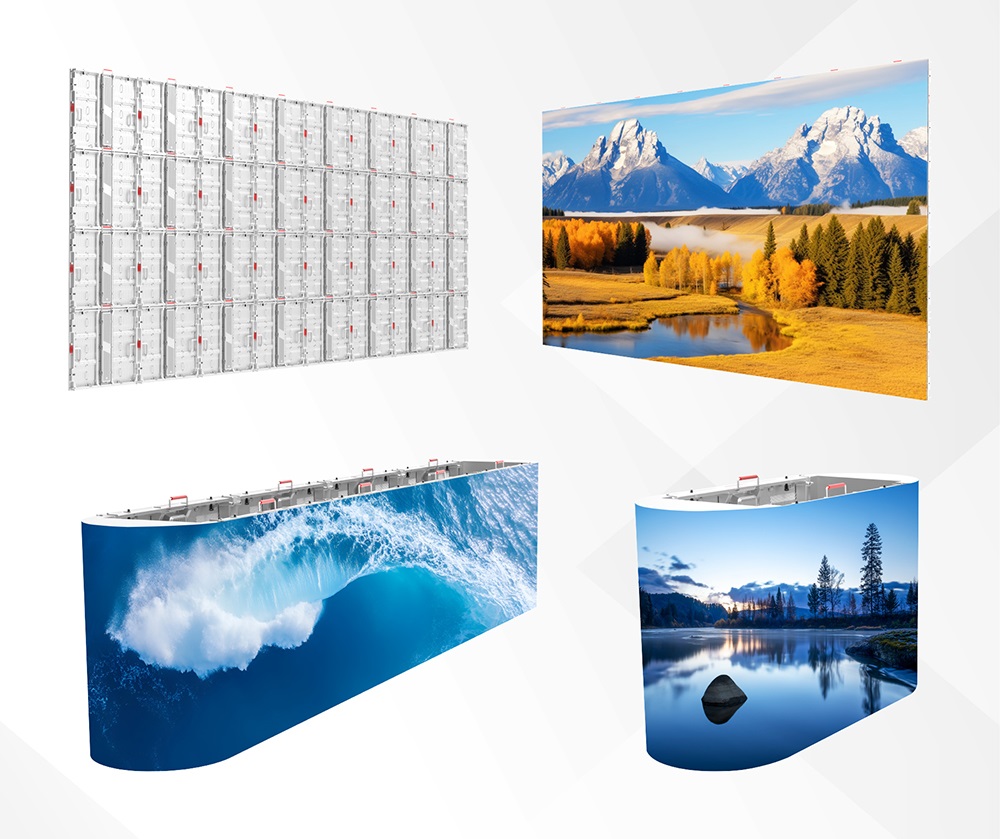

Supports flat, curved, and large-format outdoor installations with pixel pitch options from P2.5 to P10
Key Technical Highlights
| Product Model | P4 | P4.4 | P5 | P5.71 | P6.67 | P8 | P10 |
|---|---|---|---|---|---|---|---|
| Pixel Pitch | 4.0mm | 4.4mm | 5.0mm | 5.71mm | 6.67mm | 8.0mm | 10.0mm |
| Module Size | 480*320mm | 480*320mm | 480*320mm | 480*320mm | 480*320mm | 480*320mm | 480*320mm |
| Resolution | 120*80 | 108*72 | 96*64 | 84*56 | 72*48 | 60*40 | 48*32 |
| Pixel Structure | SMD1921 | SMD1415 | SMD1921 | SMD2727 | SMD2727 | SMD2727 | SMD2727 |
| Scan Mode | 1/10S | 1/9S | 1/8S | 1/7S | 1/6S | 1/5S | 1/2S |
| Frequency | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz |
| Gray Scale Level | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit |
| Brightness | ≥5000cd/m² | ≥5000cd/m² | ≥5000cd/m² | ≥5500cd/m² | ≥5500cd/m² | ≥6000cd/m² | ≥6000cd/m² |
| Viewing Angle | 140/140 | 140/140 | 140/140 | 140/140 | 140/140 | 140/140 | 140/140 |
| Module Current | ≤20A | ≤20A | ≤20A | ≤22A | ≤22A | ≤22A | ≤22A |
| Module Weight | 2.5kg | 2.39kg | 2.5kg | 2.5kg | 2.48kg | 2.29kg | 2.43kg |
| Cabinet Size | 960mm*960mm*96mm | ||||||
| Cabinet Weight | 26.5kg | ||||||
| Connection Mode | Hard Connection & Front and Rear Maintenance | ||||||
| Cabinet Resolution | 240*240 | 216*216 | 192*192 | 168*168 | 144*144 | 120*120 | 96*96 |
| IP Rating | IP65 | ||||||
| Input Voltage | 110-220V; AC±10% | ||||||
| Temperature | -20°C ~ +65°C | ||||||
| Average Power Consumption | Common cathode 180W/m² / Common anode 280W/m² | ||||||
| Max Power Consumption | Common cathode 550W/m² / Common anode 750W/m² | ||||||
Typical Applications
Widely used in:
- - Outdoor advertising billboards
- - Commercial building facades
- - Shopping mall exterior displays
- - Street digital signage
- - Public information displays
- - Stadium perimeter projects
- - Transportation display systems
Why Choose Our Outdoor Die-Cast LED Modules
Built for demanding outdoor fixed installations where stability, efficiency, and long-term durability matter.
Efficient Heat Dissipation
Full die-cast aluminum housing with optimized airflow design for stable high-load outdoor operation
Premium Outdoor Visibility
Up to 6500 nits brightness, 3840Hz refresh rate, and 5000:1 contrast ratio for clear, vivid display performance
Built for Harsh Environments
IP65/IP54 protection, -40°C to 60°C operating range, and up to 100,000 hours lifespan
Flexible Installation & Maintenance
Lightweight 960×960mm structure with front/rear service support for faster installation and reduced maintenance effort
Get Project Pricing
Looking for a reliable outdoor fixed LED module solution?
Talk with our team for product specifications, project consultation, and custom configuration support.
