Floor LED Display
Our floor LED displays adopt advanced optoelectronic technology, designed for commercial, corporate and public interactive & decorative needs, with anti-slip wear resistance, HD imaging, modular installation and long durability
Application Scenarios

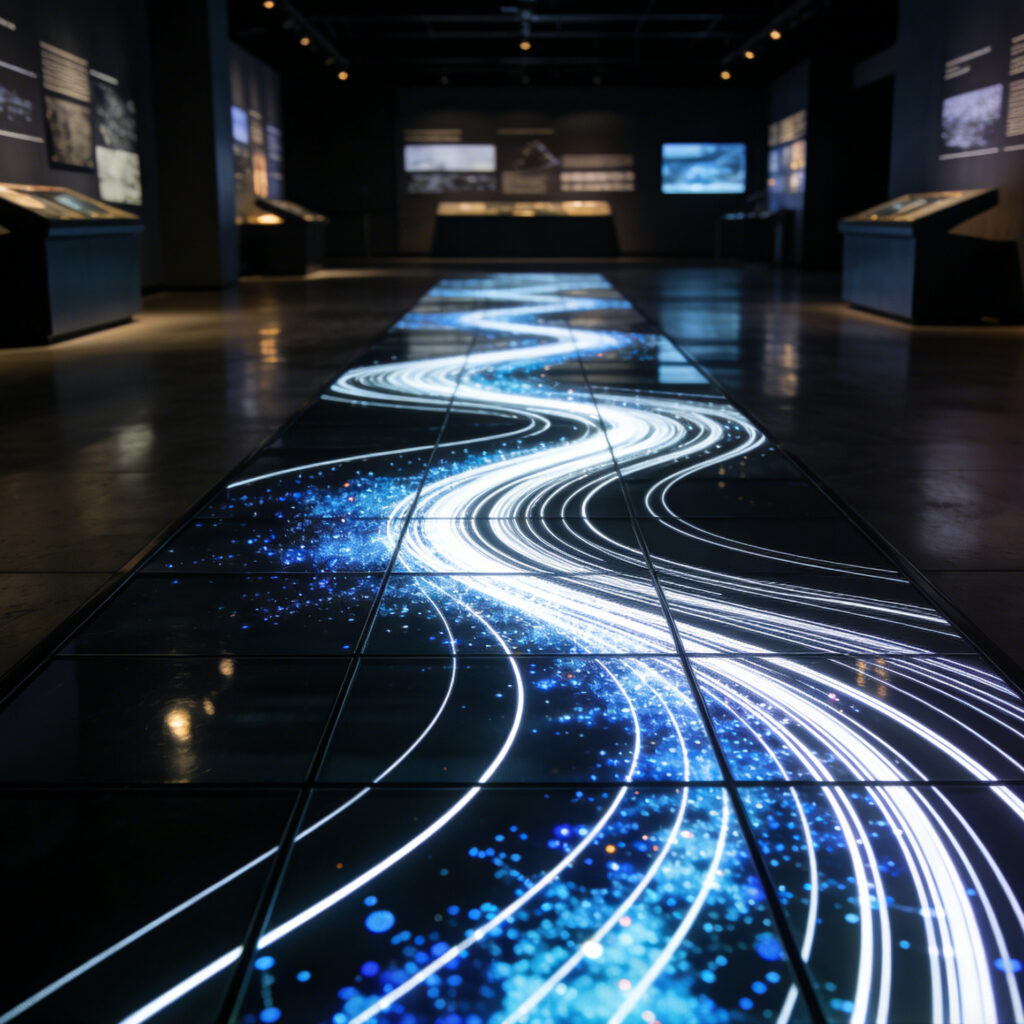

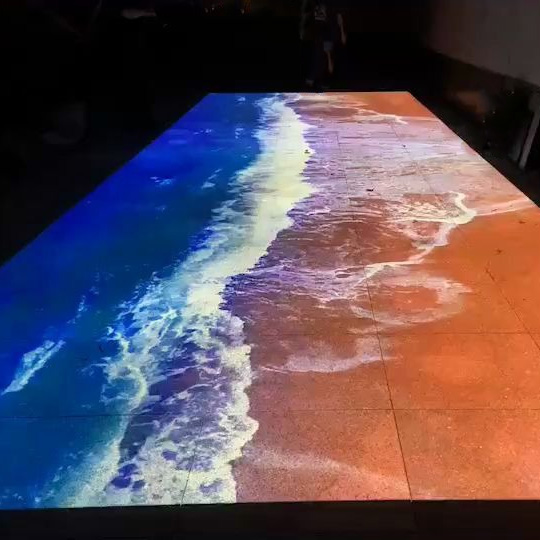

Suitable for high-traffic indoor & semi-outdoor ground installation, mainly used in malls, exhibition centers, airport terminals, commercial plazas and corporate lobbies.
Note: Not suitable for outdoor ground with long-term standing water or uneven ground.
Floor Visual Solution
Adopting SMD2121/3535 LED chips and anti-slip frosted surface, our floor LED displays meet high-traffic needs, with HD imaging, seamless splicing, shock resistance and stable performance for long-term high-frequency use.
Core Pain Points
Design & Planning Companies
Difficulty matching display effect with scene design, limited irregular customization, high special-shaped cost, and unbalanced anti-slip & visual effect.
Engineering ContractorsEngineering Contractors
Complex installation, easy damage, high after-sales cost, and difficulty in large-area seamless splicing.
Complex installation, easy damage, high after-sales cost, and difficulty in large-area seamless splicing.
Brand OperatorsBrand Operators
Insufficient wear resistance, blurred display under strong light, high energy consumption and poor interaction.
Public Institutions & Campuses
High requirements for anti-slip, waterproof and stability, strict clarity standards, and need for professional after-sales support.
High requirements for anti-slip, waterproof and stability, strict clarity standards, and need for professional after-sales support.
Distributors
Long customized delivery, unstable core component supply, and lack of professional pre-sales consultation.
Our Solutions
| Product Model | P2.97 | P3.91 (Indoor) | P3.91 (High Brightness) | P4.81 (Indoor) | P4.81 (High Brightness) |
|---|---|---|---|---|---|
| Pixel Pitch | 2.97mm | 3.91mm | 3.91mm | 4.81mm | 4.81mm |
| Pixel Density | 112896 pixel/m² | 65536 pixel/m² | 65536 pixel/m² | 43222 pixel/m² | 43222 pixel/m² |
| Brightness | ≥1000 nit, White Balance | ≥800 nit, White Balance | ≥3500 nit, White Balance | ≥800 nit, White Balance | ≥3500 nit, White Balance |
| Refresh Rate | >1920Hz | >1920Hz | >3840Hz | >1920Hz | >3840Hz |
| IP Rating | IP43 | IP43 | IP65 | IP43 | IP65 |
| Bearing Capacity | 1 ton/m² | 2 ton/m² | 2 ton/m² | 1.5 ton/m² | 1.5 ton/m² |
| Viewing Angle | X 140°, Y 140° | X 140°, Y 140° | X 140°, Y 140° | X 140°, Y 140° | X 140°, Y 140° |
| Gray Level | 14bit | 14bit | 14bit | 14bit | 14bit |
- High load capacity up to 1–2 ton/m², suitable for high-traffic floor display applications
- Indoor IP43 and outdoor IP65 options available for different installation environments

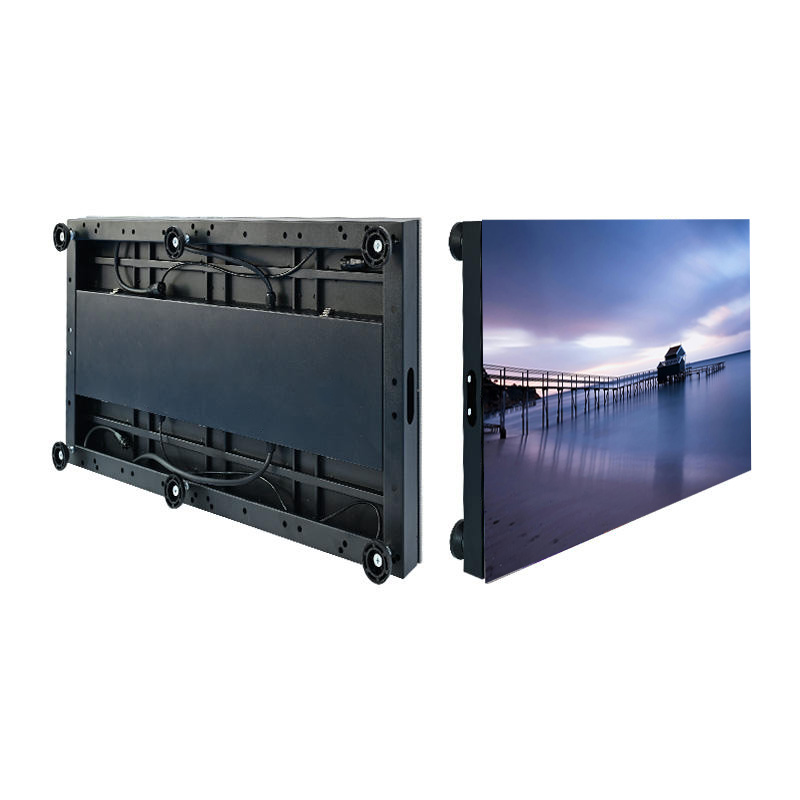

- Modular design for seamless splicing and easy installation/disassembly
- High-brightness SMD LEDs with stable performance and long-term reliability
- Stable production capacity and fast delivery for standard models
- Anti-slip surface design for safe and stable use
Selection Guide
Close-range high-precision useClose-range high-precision use
Choose P2.97. Ultra-fine pixel pitch, clear image detail, suitable for high-end indoor exhibition, premium retail interactive floor scenes.
Standard indoor high-traffic scenarios
Choose IP43 rated P3.91 / P4.81. Stable load bearing, basic dust & splash resistance, ideal for mall atriums, event venues and indoor pedestrian areas.
All-weather & heavy-duty use
Choose high-brightness IP65 rated P3.91 / P4.81. Waterproof, dustproof, strong pressure resistance and ultra-high refresh rate, adaptable to semi-outdoor spaces, large events and long-term heavy foot traffic.
OEM/ODM Customization Services
Size
Custom panel/screen; irregular shapes.
StructureStructure
Custom anti-slip surface, reinforced panels, waterproof structures
Display
High color gamut, intelligent brightness control, free adaptation to mainstream control systems and interactive modules.
Appearance
Custom color, free logo for bulk orders, anti-glare surface, optional wear-resistant coating.
Performance
Custom pixel pitch, brightness, protection level and pressure resistance, with cost adjustments.
Contact Us Today
Looking for high-quality floor LED displays for your commercial or public space? We offer personalized solutions tailored to your specific needs. Contact our team now to get a free custom quote and exclusive bulk purchase discounts.
FAQ (Based on Real Product Situation)
Can floor displays be customized for irregular ground?
Yes. Irregular customization is available, fitting special ground layouts.
Are displays easy to install and maintain?
Yes. Modular design for easy installation/disassembly; 2-year warranty and 48h after-sales support.
Compatible with existing control systems?
Fully compatible, with free adaptation, technical guidance and interactive function support.
How about anti-slip performance and durability?
Anti-slip frosted surface and 300kg/㎡ pressure resistance, industrial components ensure long-term stability.
Preferential policies for bulk purchases?
Yes. Bulk orders get exclusive discounts; free logo and installation guidance for large orders.
