Outdoor Fixed LED Display
We are a Fixed LED Display manufacturer, focusing on R&D and production, with core advantages of stable performance, seamless splicing, 100,000-hour lifespan and OEM/ODM customization for B2B bulk orders.
Application Scenarios
Ideal for fixed installation scenarios, including commercial building lobbies, shopping mall atriums, stadiums, conference centers, indoor/outdoor advertising billboards, transportation hubs and public institution halls.
Premium Fixed Visual Solution
Our mature fixed display technology makes it easy for our fixed LED displays to meet your long-term stable operation needs—they’re structurally stable, and also support large-area seamless splicing and remote intelligent monitoring.
Core Pain Points
Event Planning Companies
Poor structural stability, uneven splicing, unstable long-term operation affecting fixed event venue display effects.
Engineering Contractors
Inconsistent quality, difficult fixed installation, inconvenient later maintenance and short service life, increasing project costs.
Outdoor Advertising Operators
Frequent failures, cumbersome maintenance, short service life and uneven display, reducing advertising operation efficiency.
Public Institutions & Stadiums
Strict requirements for long-term stability, seamless splicing and intelligent monitoring, needing professional installation and after-sales support.
Distributors & Importers
Unstable supply chains, uncompetitive pricing, inadequate after-sales and poor adaptability to fixed installation scenarios.
Our Solutions
| Model | P2.5 | P3 | P4 | P5 | P6 | P8 | P10 |
|---|---|---|---|---|---|---|---|
| Pixel Pitch | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 |
| LED Specs | SMD1415 | SMD1919 | SMD1921 | SMD2525 | SMD2727 | SMD3535 | SMD3535 |
| Module Size | 320×160 | 192×192 | 320×160 | 320×160 | 192×192 | 320×160 | 320×160 |
| Module Resolution | 128×64 | 64×64 | 80×40 | 64×32 | 32×32 | 40×20 | 32×16 |
| Scan Mode | 16 Scan | 16 Scan | 10 Scan | 8 Scan | 8 Scan | 4 Scan | 2 Scan |
| Min. View Distance | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 |
| Brightness | ≥5000 | ≥4000 | ≥5000 | ≥5000 | ≥5500 | ≥6500 | ≥5000 |
| Cabinet Size | 960×960 | 576×576 | 960×960 | 960×960 | 960×960 | 960×960 | 960×960 |
| Cabinet Material | Iron | Iron | Iron | Iron | Iron | Iron | Iron |
| Cabinet Weight | 30Kg | 30Kg | 30Kg | 46Kg | 46Kg | 45Kg | 46Kg |
| Max. Power | 800W/m² | 800W/m² | 2000W/m² | 1400W/m² | 1000W/m² | 1200W/m² | 800W/m² |
| Avg. Power | 400W/m² | 350W/m² | 1000W/m² | 700W/m² | 350W/m² | 600W/m² | 400W/m² |
| Refresh Rate | ≥1200HZ | ||||||
| IP Rating | ≥IP67 | ||||||
| Viewing Angle | 120° | ||||||
| Gray Scale | ≥4096 level | ||||||
| Service Life | 100000h | ||||||
| Working Voltage | AC220V/(110V) ±15%, 47~63HZ | ||||||
| Signal Transmission | LAN Cable | ||||||
| Control System | Computer control system | ||||||
Parameters are mass-produced specs, customizable. For details, consult our professional team.
- Premium SMD Light Source
- Exquisite Craft, Stable & Reliable
- Energy-efficient, low power
- Strict waterproofing, quality assured

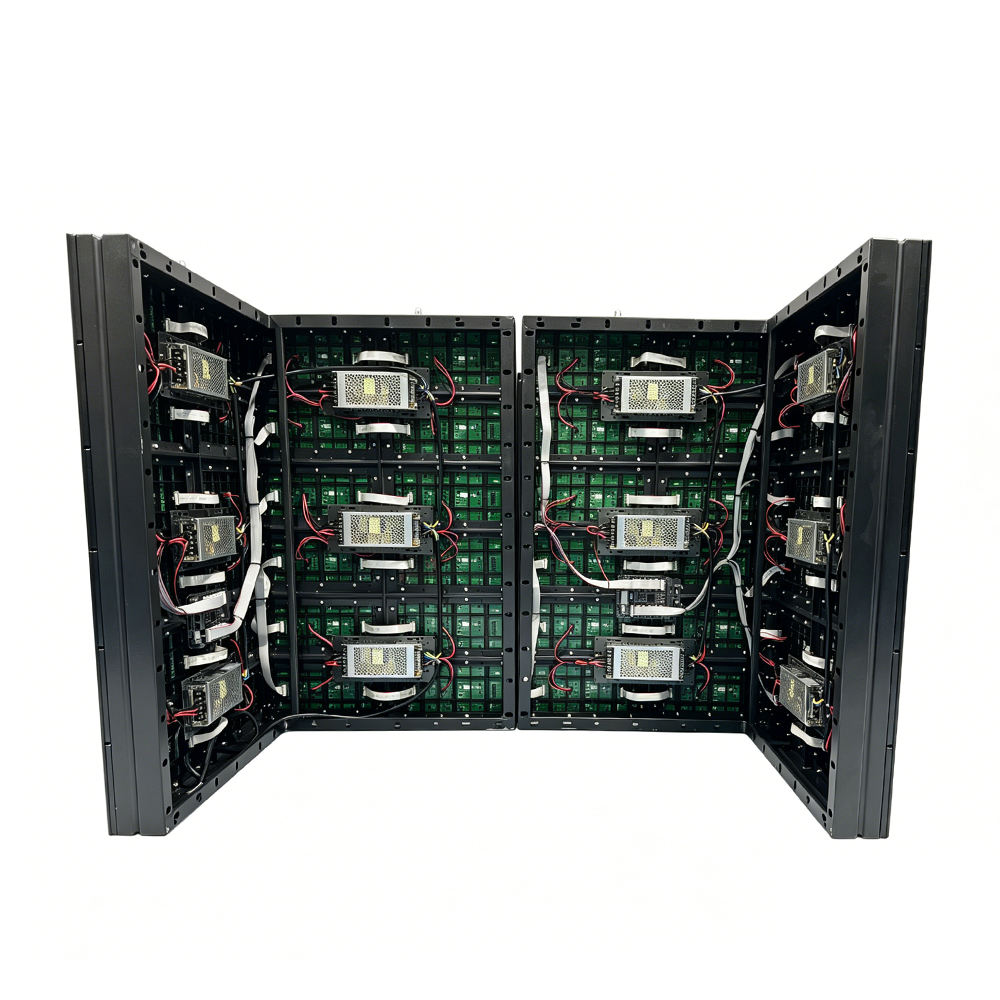

- Fast Outdoor Installation: Magnetic modules with waterproof rear covers, power boxes, and Receiving card enclosures for reliable outdoor deployment
Selection Guide
For clients unfamiliar with parameters, select fixed LED displays based on fixed
installation scenarios, viewing distance and our mainstream specs:
Viewing Distance
P2.5-P3 (3–10m), P4-P6 (10–25m), P8-P10 (＞25m) for clear outdoor fixed display effect.
Installation Scenario
320×320mm (small fixed areas); 640×320mm/640×640mm (large fixed screens, billboards).
Usage
P2.5-P3 (6000–7000cd/㎡): Short-distance street-side outdoor fixed ad screens;P4-P10 (5500–6500cd/㎡): General large outdoor fixed billboards.
OEM/ODM Customization Services
Size Customization
Customize panel/screen dimensions, supporting irregular fixed shapes (e.g., curved fixed screens, wall-mounted screens).
Structure Customization
Provide fixed installation brackets, reinforced panels, customized waterproof structures for indoor/outdoor fixed environments.
Control System Customization
Compatible with mainstream fixed control systems, supporting remote monitoring and intelligent brightness adjustment.
Appearance Customization
Customize panel color, embed logos and adopt anti-glare surface for long-term fixed viewing.
Performance Customization
Adjust brightness, customize pixel pitch and upgrade protection level for different fixed scenarios.
Our Advantages
Integrated Turnkey Solutions
Combine design, production, customization, fixed installation and after-sales to solve fixed display problems.
Industry Expertise
10+ years of fixed LED experience, mastering fixed scenario and long-term stable operation needs.
Tailored Customization
Full-process customization (size, performance) to meet diverse fixed project needs.
High Value
Bulk benefits, transparent pricing, long service life and low maintenance cost, reducing operational expenses.
Reliable Quality
Strict industrial inspection, stability and waterproof tests, ensuring long-term stable performance.
Contact Us Today
As your reliable fixed LED display partner, we solve your fixed display pain points with stable, durable and cost-effective products. Contact us for a free custom quote and exclusive bulk discounts.
FAQ
Is the fixed LED display easy to install and suitable for long-term fixed use?
Yes. It has a high-strength fixed structure, easy to install and fix, with stable performance for long-term fixed operation.
Can the panel size be customized to fit our fixed installation space?
Yes. We customize panel/screen sizes and design optimal fixed installation solutions based on your space.
Is the product compatible with our commonly used fixed display control system?
It is fully compatible with mainstream fixed control systems, and supports remote monitoring customization.
What measures will be taken in case of equipment failure during long-term fixed use?
We provide 24-hour remote technical guidance and on-site maintenance services to resolve issues promptly.
Are there any preferential policies for bulk purchases by engineering companies or advertisers?
Yes. We offer exclusive bulk discounts, transparent pricing and free fixed installation guidance.
